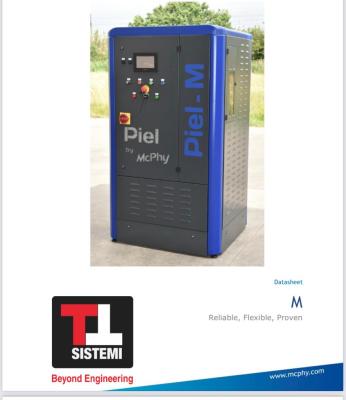

Hydrogen Generator McPhy Piel M 6.6

Technical specifications

Model 6.6

Working Pressure 2,0 barg

Max. Hydrogen Production Rate 2,4 Nm3/h 3,4 Nm3/h 4,4 Nm3/h

Max. Oxygen Production Rate 1,2 Nm3/h 1,7 Nm3/h 2,2 Nm3/h

H2 Purity (downstream electrolyser) Up to 99,5 ± 0,3 % (dry basis)

(H2O saturated at the temperature of delivery, < 5 000 ppm O2 at full load)

Higher purity can by achieved with loose accessories

Range of Room Temperature +5 °C < T < +35 °C

Electrolyte 20 % NaOH

Approx. Electrolyte Quantity 35 L

Demineralized Water

Consumption < 1 L/Nm3 of H2

Power supply

Model 3.6 5.1 6.6

Voltage 3 x 400 V AC ± 5 %

Phases 3P + N + PE

Frequency 50 Hz ± 1 %

Expected consumption at max load 14 kW 20 kW 26 kW

Cooling System

Gas Cooling System Air Heat Exchanger

Electrolyte Cooling System Air Heat Exchanger

Mass & Size

Dimensions (L x W x H) 100 cm x 90 cm x 177,5 cm

Weight 600 kg

Number of Cell Stacks 2

Certifications

CE : PED, EMC, Machinery
